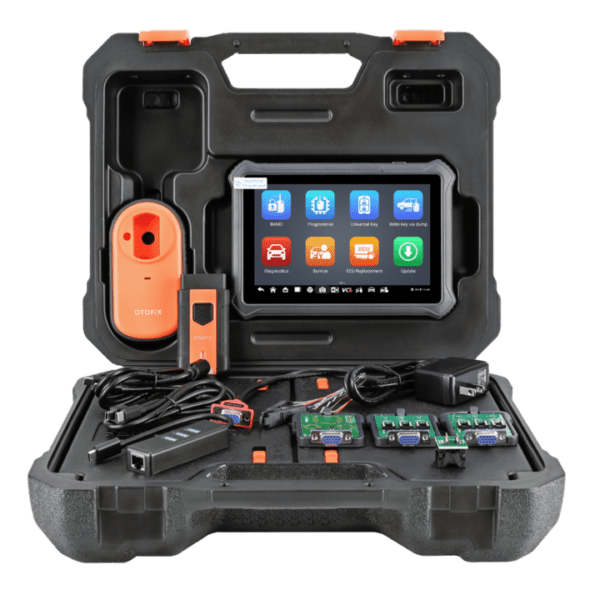

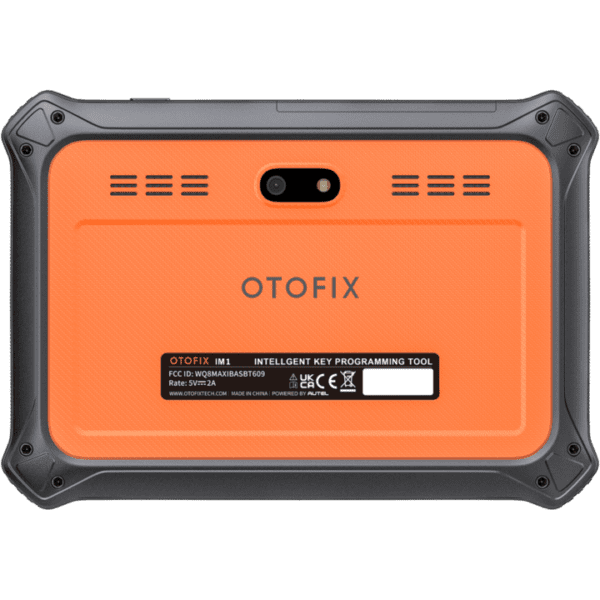

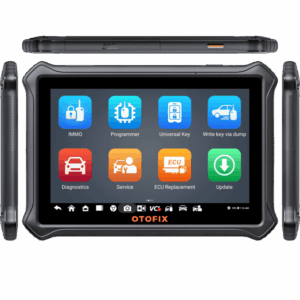

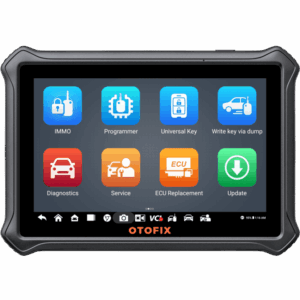

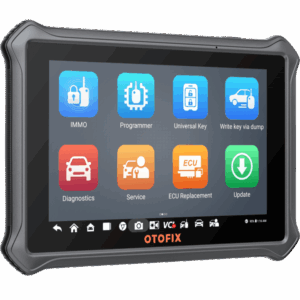

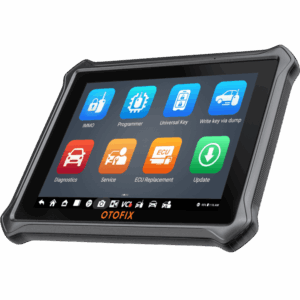

OTOFIX IM1 Automotive Diagnostics Scanner Demo Device Warranty and Updates until 04.2025

SKU: 1137[1]

Original price was: 1.155,72 €.Current price is: 712,81 €. incl. VAT

Did you like this product? Add to favorites now and follow the product.

Haben Sie eine Frage? Fragen Sie unseren Support.

Chat starten

(+49) 178 201 4932

Kostenloser Support

Ein zufriedener Kunde ist Priorität

Kostenloser Versand EU

Deutschland 1-3 Tage

Kostenloser Versand

Alle Länder bis zu 15 Tage

Kostenloser Versand für die EU

Keine Versandkosten in der EU

Weltweiter Versand

Ml24 versendet weltweit


AI Chat Support


OTOFIX IM1 is a professional key programming tool for IMMO keys and key fob programming. It enables key programming via OBD, programming of all lost keys, adding new keys, remote learning, PIN code reading, etc. All system diagnostics and services for OTOFIX IM1 are paid functions.

This device has warranty and updates until 04.2025.

Key Features:
– Supports key programming via OBD for Volkswagen IV, V, and MQB IMMO systems.
– Supports “Add Key” and “All Keys Lost” programming via OBD from CAS1 to CAS4 and FEM&BDC IMMO systems.
– Supports key programming bypassing PIN codes for all Ford models from 2005 to 2020.
– Supports key programming bypassing PIN codes for 2019-2020 Promaster, DT-RAM, Jeep Commander, etc.
– Supports reading passwords for Hyundai Kia Key ID46, 47, 4A, 8A, etc.
– Customizable service available.
– Diagnostics: Full system diagnostics and service functions. Price is €119. This option can be added on this page.
– Mercedes: All Keys Lost (on vehicle, fast), renew immobilizer components (Need XP1 Pro).
– BMW: ECU replacement (FEM/BDC, CAS1/2Z3/3+), read ISN from bench (Requires G-BOX2).
– Volkswagen: Read PIN from bench (Requires G-BOX2) and read PIN from OBD for MED17, MQB ECM replacement, and fourth-generation replacement.
– Toyota: All Keys Lost for Transponder 8A (requires APB112, G-BOX2, and 8A AKL cable).
– Ford/Mazda: PIN bypass for 2020 Mazda (Mazda3/CX-30), Ford China, and Mazda China (Mazda PMI/Mazda2013+) new parameter reset.
– Mitsubishi: All Keys Lost for ID47 Smart Key.
– OTOFIX IM1 can perform OBD key programming for more than 80% of vehicles and covers 95% of vehicles produced after 2000.
– Supports key programming for more than 2000 models from over 60 vehicle series. Check the full list of OTOFIX IM1 vehicle coverage.

Processor: 4x ARM Cortex-A35, 1.5 GHz
Operating System: Android 9, Kit Kat
Storage: 64 GB
Display: Capacitive 7-inch LCD touchscreen with internal resolution of 1024 x 600
Battery: 3.7 V / 5800 mAh
Power Consumption: 500 mA (LCD on with standard brightness, Wi-Fi on) at 3.7 V
Connectivity: Mini-USB 2.0/USB 2.0, Wi-Fi, Micro-SD card slot (supports up to 32 GB)
Operating Temperature: 0°C to 45°C
