TOPDON PulseQ AC Portable – 3.7 kW Portable EV Charger with Type 2 Connector
222,90 €
- Portable EV charger for vehicles with a Type 2 inlet, up to 3.7 kW
- Plug & play or scheduled charging, adjustable charging current
- LCD display with real-time charging status
- Type A + 6 mA DC residual current protection, IP65 control box
- Approx. 5 m cable, carry bag, 2-year warranty
- Description
- Jetzt kontaktieren
- Additional information
- Reviews (0)
Description

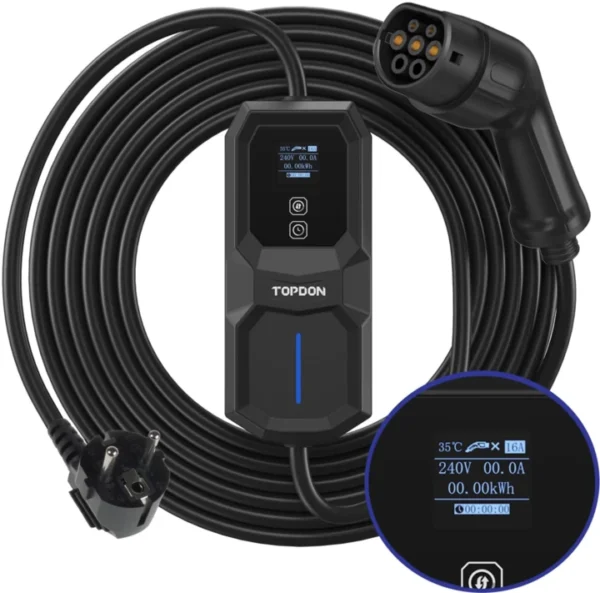

TOPDON PulseQ AC Portable – 3.7 kW portable EV charger with Type 2 connector
There isn’t always a wallbox to hand: at a holiday home, visiting family, in a garage without a charge point or as a back-up on the road. The TOPDON PulseQ AC Portable is a portable charger for vehicles with a Type 2 inlet. It charges on single-phase power at up to 3.7 kW, shows the charging status on its LCD display and starts as soon as you plug in or at a scheduled time.
What the PulseQ AC Portable can do
- Charging up to 3.7 kWSingle-phase at up to 16 A and 230 V
- Adjustable charging currentSet the current in steps to suit the socket and your electricity supply
- Plug & playCharging starts as soon as you plug in
- Scheduled chargingPlan the start time, for example to use cheaper overnight tariffs
- LCD displayReal-time charging status, plus LED status indicator
- MonitoringBuilt-in voltage, current and temperature sensing
A good fit if you …
- drive an electric or plug-in hybrid vehicle with a Type 2 inlet
- want a charger for travelling or as a companion to your wallbox
- charge overnight and want a full battery in the morning
- need to charge in places without a charge point
Probably not for you if you …
- want fast charging – at 3.7 kW a full charge takes many hours, depending on the battery
- cover long distances every day – a wallbox makes more sense then
Technical data
| Charging power | up to 3.7 kW |
|---|---|
| Charging current | up to 16 A, adjustable |
| Voltage | 230 V single-phase, 50/60 Hz |
| Vehicle connector | Type 2 to IEC 62196-2 |
| Residual current protection | Built-in, Type A + 6 mA DC leakage detection |
| Protection rating | IP65 (control box) |
| Cable length | approx. 5 m in total |
| Control box dimensions | 240 × 100 × 65 mm |
| Operating temperature | -30 °C to 50 °C |

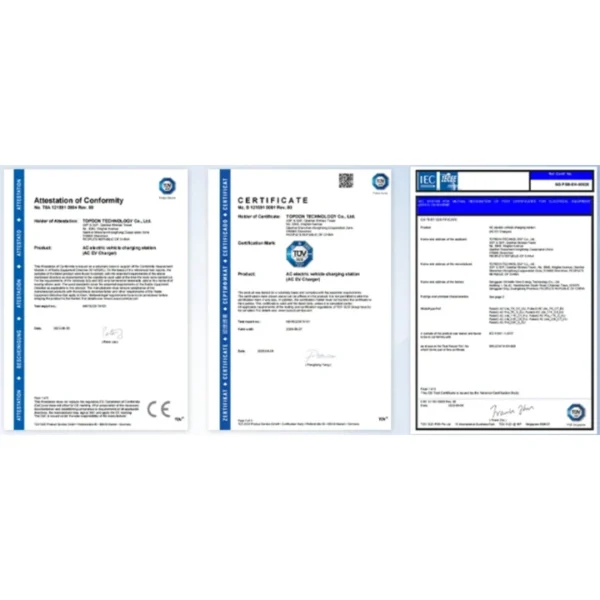

| Standards | according to TOPDON EN 62752, IEC 62196-2, TÜV, CE |
Safety
The control box with built-in residual current protection monitors the charging process continuously. According to TOPDON, it protects against:
- undervoltage
- overvoltage
- overload
- overheating
- short circuit
- residual current
- missing earth
With its IP65 rating, the control box is dust-tight and protected against water jets.
What’s in the box
- PulseQ AC Portable charger
- Carry bag
- User manual
Good to know
- SocketOnly charge from an undamaged, properly installed socket that is suitable for continuous load. With older wiring, reduce the charging current or have the socket checked by a qualified electrician.
- No extension leadsDo not use extension leads, cable reels or multi-way adapters.
- Charging timeHow long a charge takes depends on battery size, state of charge and the current set.
- Warranty2 years
Is the PulseQ AC Portable right for your vehicle?
Tell us your vehicle – we’ll check before you buy.
Questions we often get
Which vehicles does the PulseQ AC Portable work with?
With electric and plug-in hybrid vehicles that have a Type 2 charging inlet, the standard in Europe.
How fast does the PulseQ AC Portable charge?
At up to 3.7 kW. That’s fine for overnight charging, but fully charging a large battery takes many hours.
Can I use an extension lead?
No. Plug the charger directly into a suitable socket, without an extension lead, cable reel or multi-way adapter.
Can I charge in the rain?
The control box is IP65-rated against dust and water jets. The socket itself must be suitable for outdoor use.
Additional information
| Weight | 3 kg |
|---|
