PulseQ AC Pro Wallbox Charging Station 22KW
552,22 €
- Wallbox with Type 2 socket, single- and three-phase up to 22 kW
- 3 charging modes: plug and play, app control and RFID card
- App with scheduling, cost and charging overview, Alexa integration
- Built-in Type A + 6 mA DC residual current protection, IP54 and IK10
- Wi-Fi, Ethernet and Bluetooth, 2-year warranty
- Description
- Jetzt kontaktieren
- Additional information
- Reviews (0)
Description

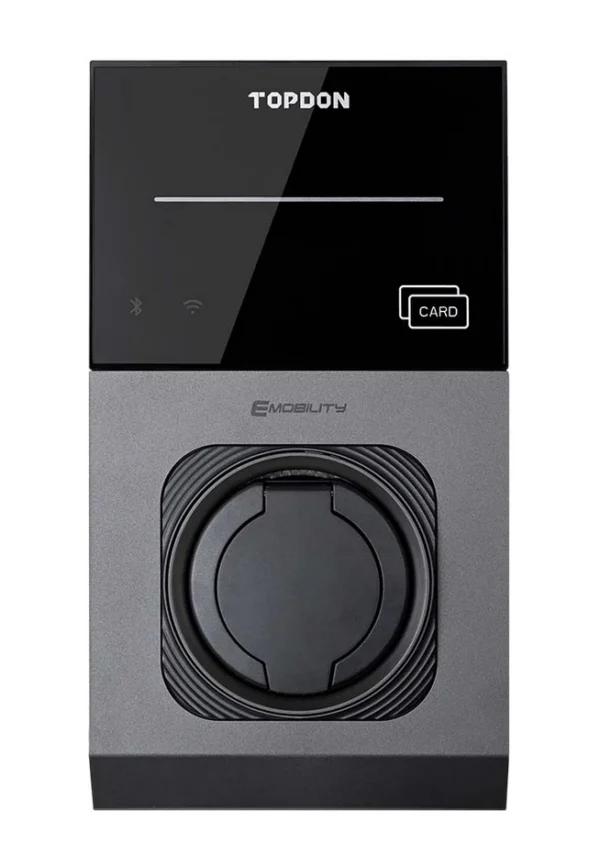

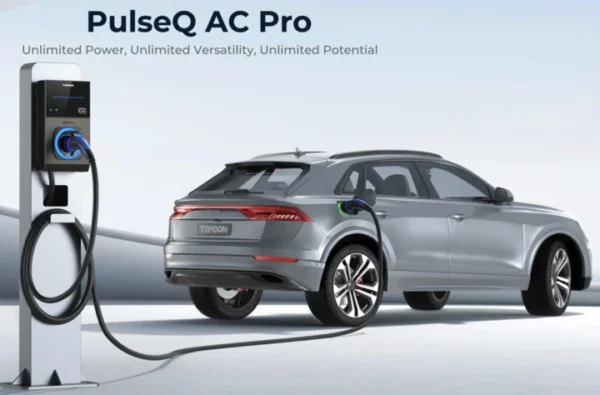

TOPDON PulseQ AC Pro – wallbox with Type 2 socket, up to 22 kW and app control
If you charge your electric car at home or in a company car park, you need a wallbox that is reliable, safe and easy to use. The TOPDON PulseQ AC Pro charges vehicles with a Type 2 inlet on single-phase or three-phase power at up to 22 kW. Charging starts via plug and play, the app or an RFID card, and you can keep an eye on every session from your smartphone.
What the PulseQ AC Pro can do

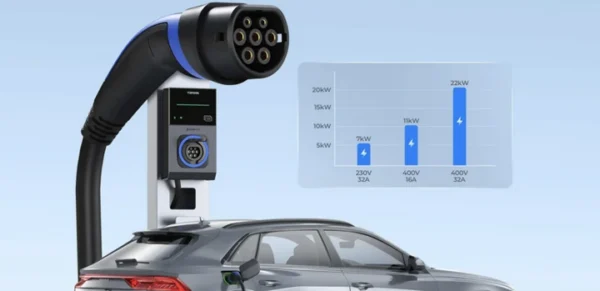

- Charging up to 22 kWThree-phase at 32 A and 400 V, single-phase at up to 32 A and 230 V

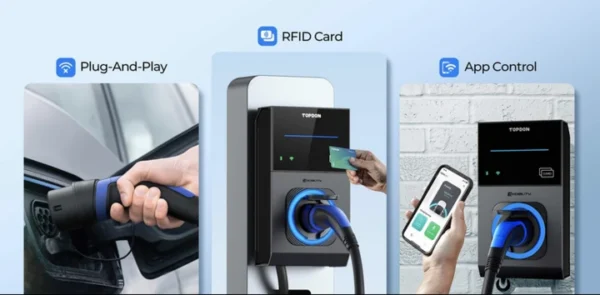

- 3 charging modesPlug and play, start via the app or authorise with an RFID card

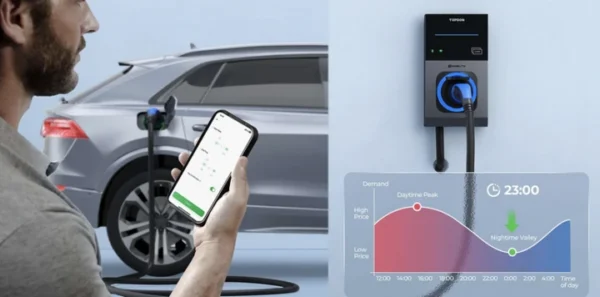

- App controlStart and pause charging, schedule charging times, track status, estimated time, cost and energy delivered
- Charging historyOverview of past sessions and a notification when the vehicle is fully charged
- Voice controlAmazon Alexa integration
- ConnectivityWi-Fi or Ethernet, initial setup via Bluetooth
A good fit if you …
- charge an electric or plug-in hybrid vehicle with a Type 2 inlet
- already have a Type 2 charging cable or want the flexibility to use different cables
- want to schedule charging and track costs in an app
- want to restrict access with an RFID card, for example in a garage or company yard
Probably not for you if you …
- are looking for a wallbox with a tethered cable
- need DC rapid charging – the PulseQ AC Pro charges with alternating current
- want to connect the wallbox yourself without a qualified electrician
Technical data
| Charging power | up to 22 kW |
|---|---|
| Charging current | 6–32 A |
| Voltage | 230 V / 400 V, 50/60 Hz |
| Connector | Type 2 socket to IEC 62196-2 |
| Residual current protection | Built-in, Type A 30 mA + 6 mA DC leakage detection |
| Protection rating | IP54, IK10 |
| Operating temperature | -30 °C to 50 °C |
| Dimensions | approx. 340 × 189 mm |
| Connectivity | Wi-Fi, Ethernet, Bluetooth |
| App | PulseQ AC, Android 5.0+ and iOS 11.0+ |
| Certifications | according to TOPDON TÜV, CE, CB, RoHS |
Safety

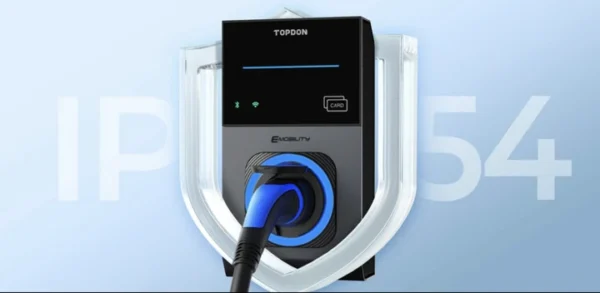

In addition to the built-in residual current protection, according to TOPDON the PulseQ AC Pro monitors overvoltage, undervoltage, overcurrent, overheating, earthing and reversed phases. The PC and aluminium housing is IP54-rated against splashing water and dust and IK10-rated for impact resistance – suitable for garages, carports and exterior walls.
What’s in the box
- PulseQ AC Pro wallbox
- Wall bracket, drilling template and M5 × 40 mm wall plugs
- Hex key and spudger
- RFID charging card
- User manual, quick start guide and quality certificate
A Type 2 to Type 2 charging cable and the supply cable are not included.
Good to know

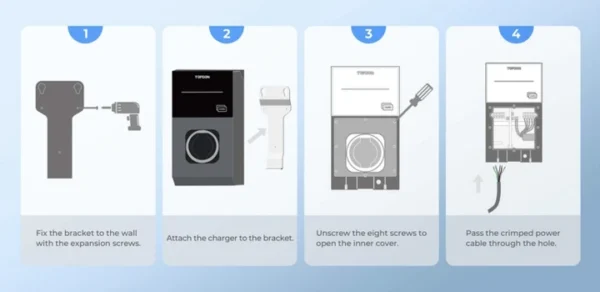

- InstallationThe wallbox must be connected by a qualified electrician. The unit does not need to be fully dismantled for wiring.
- Grid operatorIn Germany, wallboxes must be registered with the grid operator, and above 12 kW – so at 22 kW – its approval is also required. In Austria, the grid operator must also be notified. In other countries, check the local rules.
- Actual charging powerCharging speed also depends on the vehicle’s on-board charger. Many electric cars charge at a maximum of 11 kW on AC.
- Warranty2 years
Questions about the PulseQ AC Pro?
Tell us your vehicle and your home electricity supply – we’ll help you choose.
Questions we often get
Is a charging cable included?
No. The PulseQ AC Pro has a Type 2 socket, so you use your own Type 2 to Type 2 charging cable.
Will my car really charge at 22 kW?
Only if your vehicle’s on-board charger supports 22 kW and your electricity supply is rated for it. Many electric cars charge at a maximum of 11 kW on AC.
Can I install the wallbox myself?
No, it must be connected by a qualified electrician. Depending on the country, the wallbox must also be registered with the grid operator.
Can the wallbox be mounted outdoors?
Yes, with an IP54 rating and an operating range of -30 °C to 50 °C it is also suitable for exterior walls.
