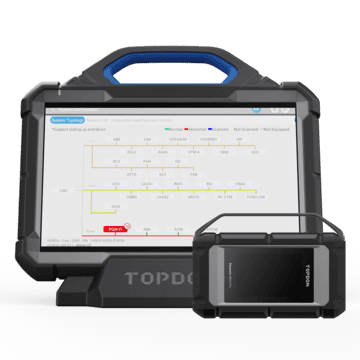

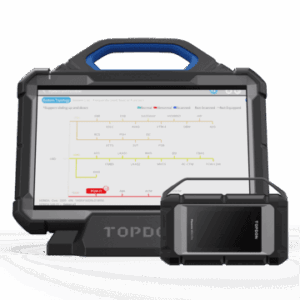

TOPDON Phoenix Max Special Edition – 10 Years of Updates + Free 2000A Jump Starter
8.240,11 €
✓ FREE TOPDON Jump Starter 2000
TOPDON Phoenix Max Special Edition – the 13.3-inch professional diagnostic system for workshops, with no annual update renewal required.
- 4-channel oscilloscope, topology mapping, online programming and coding
- MDCI Pro with J2534, CAN FD, DoIP, and RP1210
- FCA Gateway access, ADAS with optional activation
- 2-year manufacturer’s warranty
- Description
- Jetzt kontaktieren
- Additional information
- Reviews (0)
Description
TOPDON Phoenix Max Special Edition – 13.3-Inch Diagnostic System with Oscilloscope and 10 Years of Updates
The TOPDON Phoenix Max is TOPDON’s flagship diagnostic system for professional workshops: 13.3-inch display, integrated 4-channel oscilloscope, online programming and coding, topology mapping, FCA Gateway access, and the MDCI Pro with J2534, CAN FD, DoIP, and RP1210. The Phoenix Max Special Edition includes a 10-year update license plus a FREE Jump Starter 2000.
- 10 Years of Updates
- FREE Jump Starter 2000
- 13.3″ Display
- 4-Channel Oscilloscope
- Online Programming
- 2-Year Warranty
Standard or Special Edition?
| Feature | Phoenix Max | Phoenix Max Special Edition |
|---|---|---|
| Hardware and Functions | Identical | Identical |
| Software Updates | Regular update renewals required | 10 Years Included |
| Jump Starter 2000 | No | FREE |
| Manufacturer’s Warranty | 2 Years | 2 Years |
For workshops planning to use the Phoenix Max for many years, the Special Edition eliminates the need for recurring update renewals. Individual update extensions are available for comparison under TOPDON Updates.
TOPDON Phoenix Max Functions
Diagnostics and Measurement
- Full-system diagnostics for passenger vehicles
- Topology mapping: view all vehicle systems at a glance
- 4-channel oscilloscope for real-time electrical signal analysis
- MDCI Pro with J2534, CAN FD, DoIP, RP1210, and MegaCAN
Programming and Security Access
- Online programming and online coding
- FCA Gateway access
- ADAS calibration with ADAS activation and compatible calibration equipment
- Battery testing and commercial vehicle diagnostics with optional accessories
For Volkswagen Group vehicles with SFD/SFD2 and Renault/Dacia vehicles with Security Gateway protection, compatible activation licenses are available under TOPDON Updates.
Practical Example: Intermittent Engine Misfire
The fault memory reports a misfire on one cylinder, but not the underlying cause. With diagnostics and an oscilloscope integrated into a single device, you can:
- Check Fault Codes and Live DataRead the fault code and misfire counter for each cylinder.
- Measure the Ignition SignalUse the 4-channel oscilloscope to record the ignition coil control signal on the affected cylinder.
- Compare SignalsCompare the signal with a correctly functioning cylinder to help isolate the control signal, ignition coil, or wiring as the cause.
- Verify the RepairAfter the repair, clear the fault codes and check the misfire counters again.
Technical Specifications
| Display | 13.3 inches, 1920 × 1200 |
|---|---|
| Operating System | Android 9.0 |
| RAM / Storage | 8 GB RAM / 256 GB |
| Battery | 18,600 mAh, 3.8 V |
| Camera | 13 MP Rear Camera |
| Wi-Fi | Dual-Band 2.4 and 5 GHz |
| Dimensions | 364 × 285 × 82 mm |
| Updates / Warranty | 10-Year Update License / 2-Year Manufacturer’s Warranty |
What’s Included
- TOPDON Phoenix Max
- MDCI Pro with MegaCAN, CAN FD, and J2534
- 4-Channel Oscilloscope
- 16-Pin Adapter Cable Kit
- OBD-II Extension Cable
- Cigarette Lighter Cable
- Battery Clamp Cable Set
- USB-C Cable and Power Adapter
- Password Envelope
- User Manual (German version available by email)
- TOPDON Jump Starter 2000 (FREE Bonus)
Is the Special Edition Worth It for Your Workshop?
Tell us how long you plan to use the device and which vehicles you work on – we’ll help you compare the options.
Frequently Asked Questions About the Phoenix Max Special Edition
What is the difference compared with the standard Phoenix Max?
The hardware and functions are identical. The Special Edition additionally includes a 10-year update license and a FREE Jump Starter 2000.
What do 10 years of updates mean?
For ten years, you can download the software updates TOPDON provides for the Phoenix Max without purchasing annual update renewals.
Does the Phoenix Max include an oscilloscope?
Yes. A 4-channel oscilloscope is included with the Phoenix Max.
Can the Phoenix Max perform ECU programming?
Yes. It supports online programming and coding on compatible vehicles, as well as J2534 Pass-Thru programming with supported manufacturer software.
Does the Phoenix Max support ADAS calibration?
Yes. ADAS calibration is available with the separately sold ADAS activation license and compatible calibration equipment.
Additional information
| Weight | 12 kg |
|---|
