TOPDON PulseQ E 22 kW Wallbox with Tethered Type 2 Cable, App & RFID
620,18 €
- Wallbox with up to 22 kW, three-phase 400 V, 6–32 A
- Tethered Type 2 charging cable, 5 m (7.5 m optional)
- App control, charging authorisation via RFID card
- IP65 for indoor and outdoor use, -35 °C to 55 °C

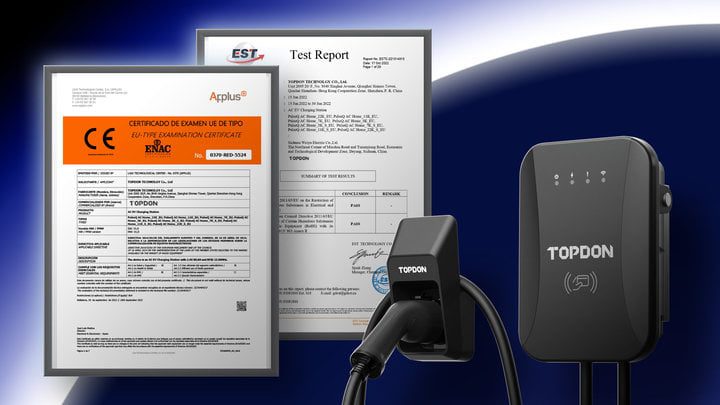

- CE, LVD, RED, RoHS, REACH-tested
- Description
- Jetzt kontaktieren
- Reviews (0)
Description
TOPDON PulseQ E – 22 kW wallbox with tethered Type 2 cable, app and RFID
If your electric car can charge at 22 kW on AC, or several vehicles share the same charging spot, full power pays off. The TOPDON PulseQ E 22 kW charges three-phase at up to 32 A, has a tethered Type 2 charging cable and is controlled via app or RFID card. With IP65 protection it’s equally suited to garages, carports and company car parks.
A good fit if you …
- have a vehicle whose on-board charger supports 22 kW
- want a wallbox with a tethered cable – no separate charging cable needed
- are mounting it outdoors and need strong protection against dust and water jets
- want to secure access with RFID, for example in a company car park
Probably not for you if you …
- have a vehicle that charges at a maximum of 11 kW – the PulseQ E 11 kW is enough and in Germany only needs to be registered
- prefer to use your own charging cable with a Type 2 socket – the TOPDON PulseQ AC Pro is designed for that
- want to connect the wallbox yourself without a qualified electrician
What the PulseQ E 22 kW can do
- Charging up to 22 kWThree-phase at 400 V, charging current 6–32 A
- Tethered cableType 2 to IEC 62196-2, 5 m long, 7.5 m optional
- App controlStart, schedule and monitor charging sessions in real time
- RFIDCharging only with an authorised card
- Plug and PlayPlug in the vehicle and charge without app or card – if you prefer
- Indoor and outdoorCompact housing with IP65, operation from -35 °C to 55 °C, several mounting options
Technical data
| Charging power | up to 22 kW |
|---|---|
| Voltage | 400 V AC, three-phase |
| Charging current | 6–32 A |
| Connector | Tethered Type 2 charging cable to IEC 62196-2 |
| Cable length | 5 m, 7.5 m optional |
| Protection rating | IP65 |
| Operating temperature | -35 °C to 55 °C |
| Dimensions | 310 × 215 × 95 mm |
| Weight | approx. 7–9 kg, depending on cable length |
| Authorisation | App, RFID, Plug and Play |
| Certifications | CE, LVD, RED, RoHS, REACH-tested |
Good to know
- InstallationThe wallbox must be connected by a qualified electrician. The electrical supply must be rated for 32 A three-phase.
- Grid operatorIn Germany, wallboxes must be registered with the grid operator. Above 12 kW – so at 22 kW – their approval is also required. In Austria, the grid operator must also be notified. In other countries, check the local rules.
- Actual charging powerHow fast you charge also depends on the vehicle’s on-board charger. Many electric cars charge at a maximum of 11 kW on AC.
11 or 22 kW – which do you need?
Tell us your vehicle and your electrical supply – we’ll tell you which version is right.
Questions we often get
Will my car really charge at 22 kW?
Only if your vehicle’s on-board charger supports 22 kW and your electrical supply is rated for it. Many electric cars charge at a maximum of 11 kW on AC.
What’s the difference from the PulseQ E 11 kW?
Both have the same housing, tethered cable, app and RFID. The 22 kW version charges twice as fast but in Germany needs the grid operator’s approval. The 11 kW version only needs to be registered.
What’s the difference from the PulseQ AC Pro?
Both charge at up to 22 kW. The PulseQ E has a tethered charging cable and IP65, the PulseQ AC Pro has a Type 2 socket for your own cable.
Is a charging cable included?
Yes, the Type 2 charging cable is tethered and 5 m long. A version with 7.5 m is optionally available.
Can I mount the wallbox outdoors?
Yes, with IP65 protection and an operating range of -35 °C to 55 °C it’s suitable for carports and outside walls.
