OTOFIX IM1 Car Diagnostic Scanner

SKU: 1137
98 in stock

Original price was: 1.200,00 €.Current price is: 861,06 €. incl. VAT

98 in stock

Did you like this product? Add to favorites now and follow the product.

Haben Sie eine Frage? Fragen Sie unseren Support.

Chat starten

(+49) 178 201 4932

Kostenloser Support

Ein zufriedener Kunde ist Priorität

Kostenloser Versand EU

Deutschland 1-3 Tage

Kostenloser Versand

Alle Länder bis zu 15 Tage

Kostenloser Versand für die EU

Keine Versandkosten in der EU

Weltweiter Versand

Ml24 versendet weltweit


AI Chat Support

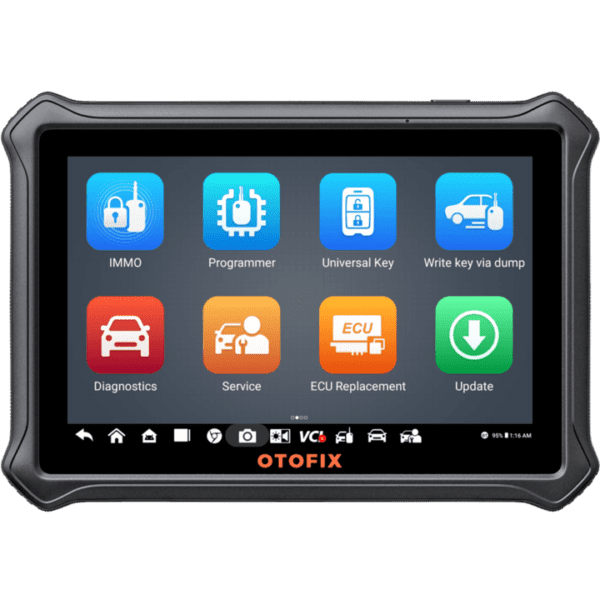

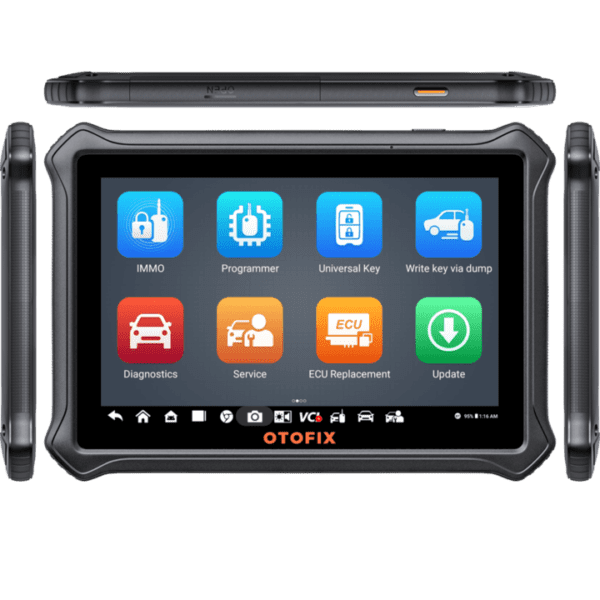

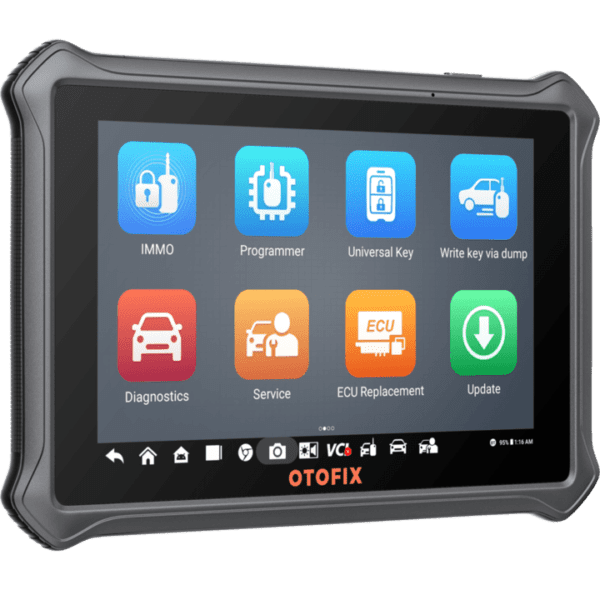

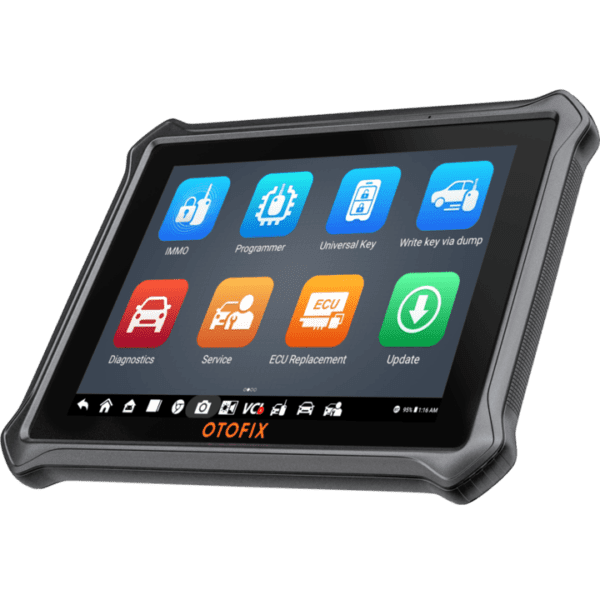

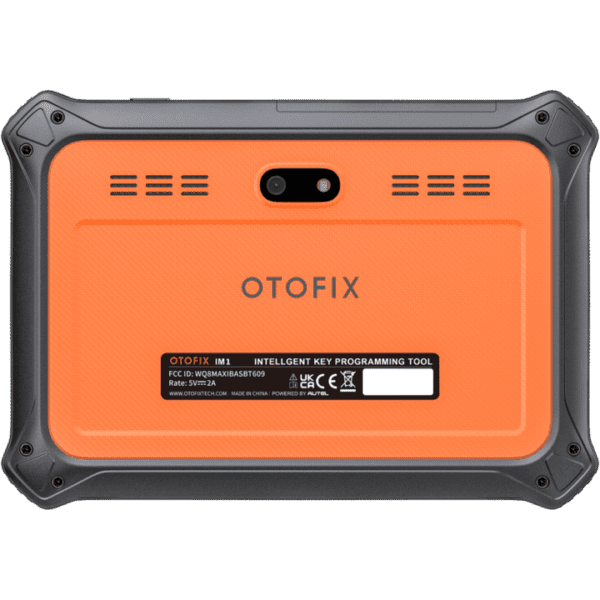

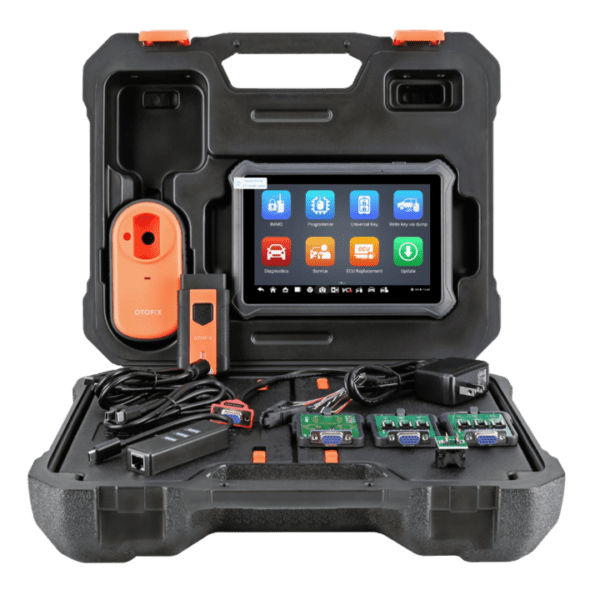

OTOFIX IM1 is a professional key programming tool for IMMO keys and key fob programming. It enables key programming via OBD, programming of all lost keys, adding new keys, remote learning, PIN code reading, and more. All system diagnostics and services for OTOFIX IM1 are paid functions.

This device comes with 2 years of free updates and a 1-year warranty.

Main Features:
– Supports key programming via OBD for Volkswagen IV, V, and MQB IMMO systems
– Supports “key adding” and “all keys lost” programming via OBD from CAS1 to CAS4 and FEM&BDC IMMO systems
– Supports key programming bypassing the PIN code for all Ford models from 2005 to 2020
– Supports key programming bypassing the PIN code for 2019-2020 Promaster, DT-RAM, Jeep Commander, etc.
– Supports reading the password for Hyundai Kia Key ID46, 47, 4A, 8A, etc.
– Customizable service available

Paid Functions:
– Full system diagnostics and service functions
– Mercedes: All keys lost (on-vehicle, quick), renewing immobilizer components (requires XP1 Pro)
– BMW: ECU replacement (FEM/BDC, CAS1/2Z3/3+), reading ISN from Bench (requires G-BOX2)
– Volkswagen: Read PIN from Bench (requires G-BOX2), read PIN from OBD for MED17, MQB ECM replacement, and fourth-generation replacement
– Toyota: All keys lost for Transponder 8A (requires APB112, G-BOX2, and 8A AKL cable)
– Ford/Mazda: PIN bypass for 2020 Mazda (Mazda3/CX-30), Ford China, and Mazda China (Mazda PMI/Mazda2013+) new parameter reset
– Mitsubishi: All keys lost for ID47 Smart Key

OTOFIX IM1 can perform OBD key programming for over 80% of vehicles and covers 95% of vehicles produced after 2000.

It supports key programming for over 2000 models from over 60 vehicle series. Check the full list of OTOFIX IM1 vehicle coverage on their website.

– Processor: 4x ARM Cortex-A35, 1.5 GHz
– Operating System: Android 9, Kit Kat
– Storage: 64 GB
– Display: Capacitive 7-inch LCD touchscreen with an internal resolution of 1024 x 600
– Battery: 3.7 V / 5800 mAh
– Power Consumption: 500 mA (LCD on with standard brightness, Wi-Fi on) at 3.7 V
– Connectivity: Mini-USB 2.0/USB 2.0, Wi-Fi, Micro-SD card slot (supports up to 32 GB)
– Operating Temperature: 0°C to 45°C
