OBD diagnostic device TOPDON PHOENIX LITE 2

Description

Product Specifications

Display: LCD 8 inch, 1280 * 800 pixels
CPU: 4-core processor, 2.0 GHz
Android 10.0
RAM: 2GB, ROM 32GB
Battery: 12600 mAh / 3.8V
(Tested for up to 24 hours of battery life with the screen on)
Operating Voltage: 9~18V
Storage Temperature: -20°C~60°C (-4°F~140°F)
Operating Temperature: 0°C~50°C (32°F~122°F)
Dimensions: 258 * 183 * 50.5 mm (10.16 * 7.20 * 1.99 inches)
Package Size: 468*320*143 mm (18.43*12.60*5.63 inches)
Net Weight: 1184.5 g (2.61 lbs.)
Package List: See package list
Multilingual Support: English, French, German, Spanish, Portuguese, Russian, Japanese, Italian, Korean, Chinese (traditional), Hungarian, Dutch, Turkish, Polish, Finnish

VCI Connection
Operating Temperature: -10°C~50°C (14°F~122°F)
Operating Voltage: 9 ~ 18 V
Operating Current: ≦ 130 mA
Dimensions: 81.3 * 51.0 * 31.0 mm (3.2 * 2.0 * 1.2 inches)

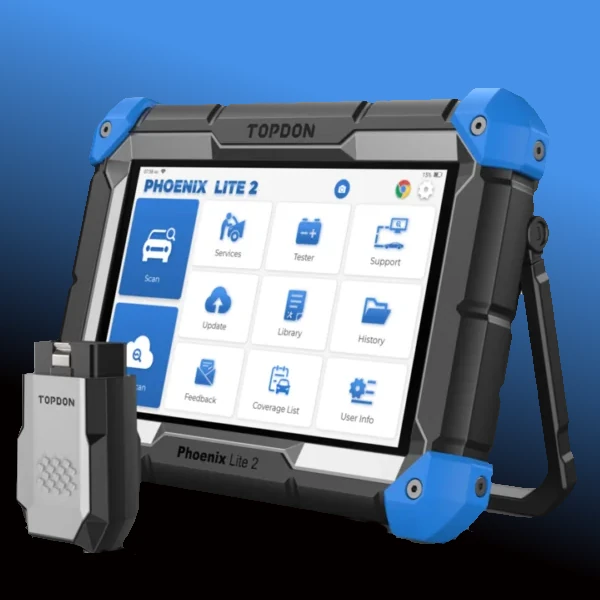

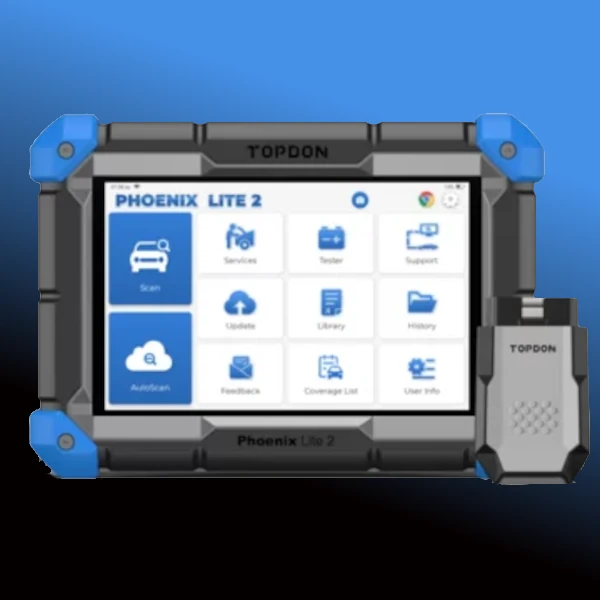

The Phoenix Lite 2 is the new compact pro-level OBD diagnostic tool from TOPDON. This OBD diagnostic device features numerous OBD special functions to simplify your workshop routine.

Special Functions

1. Oil Reset (53 brands)
2. SAS Reset (44)
3. EBP Reset (41)
4. BMS Reset (31)
5. DPF (39 brands)
6. ABS Bleeding (34)
7. Immobilizer
8. Sunroof Reset
9. Suspension Reset (11)
10. Transmission Reset
11. AFS Headlamp Reset
12. Injector Coding
13. Gear Learning
14. TPMS Reset
15. Throttle Adaptation (37)
16. A/F Reset (5)
17. ADBLUE Reset (8)
18. Coolant Bleeding (5)
19. AGR Reset (7)
20. Language Change (7)
21. NOx Sensor Reset (8)
22. Mileage Calibration (9)
23. Seat Calibration (18)
24. STOP/START (5)
25. AIRBAG Reset
26. Transport Mode (13)
27. TYPE Reset (5)
28. Window Calibration (15)

Customize Your Car with Online Coding
The Phoenix Lite 2 supports online coding for BENZ, BMW, PORSCHE, VW, AUDI, SEAT, and other vehicles. This helps to adapt and code new control units after replacement or unlock hidden functions, giving your car more options.

Guided Function
Equipped with the VAG Guided Function for VW, AUDI, SKODA, and SEAT vehicles, the Phoenix Lite 2 can guide you through tuning, calibrations, and basic adjustments or settings step by step to effectively perform the diagnostic process.

For more information, visit:

Phoenix Lite 2

Vehicle and Function Coverage:

https://www.topdon.com/pages/support-diagnostic-tool
