Launch X431 PAD VII Pad 7 ELITE + Prog 3 +TSGUN + BST360 + VSP600
3.024,37 €
Launch X431 PAD VII Elite – 13.3-inch diagnostic tablet as a complete set with four expansion modules.
- Online and J2534 programming, ECU coding, topology
- X-Prog 3 for immobilizer and key programming
- i-TPMS, BST360 battery tester and VSP600 videoscope included
- 60+ reset functions, passenger cars and commercial vehicles
- Description
- Jetzt kontaktieren
- Reviews (0)
Description

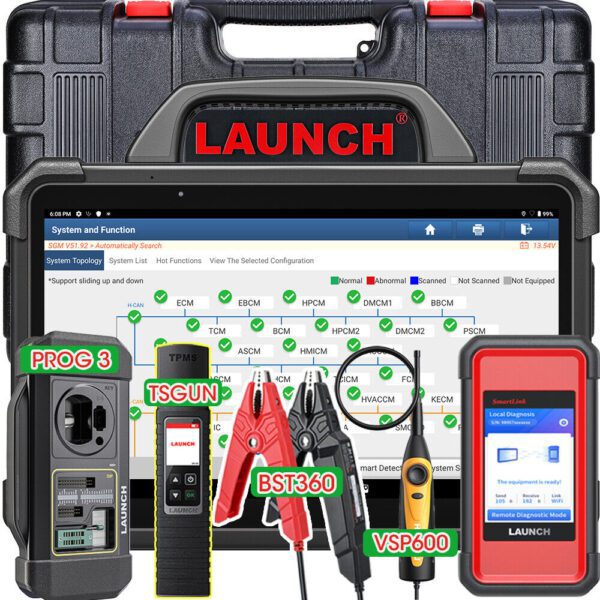

Launch X431 PAD VII Elite – Complete Set with X-Prog 3, i-TPMS, BST360 and VSP600
This set turns the Launch X431 PAD VII (PAD 7) into a complete diagnostic solution for professional workshops. In addition to the 13.3-inch tablet with online programming, J2534, topology and ECU coding, the package includes four expansion modules that would otherwise need to be purchased separately: the X-Prog 3 for immobilizer and key programming, i-TPMS for tire pressure sensors, the BST360 battery tester and the VSP600 videoscope.
- 13.3″ Tablet
- Online Programming
- J2534 & DoIP
- ECU Coding
- 60+ Reset Functions
- 4 Modules Included
What’s Included – and What You Need It For
X431 PAD VII + SmartLink C
The diagnostic tablet with SmartLink C VCI: vehicle communication, local and remote diagnostics, plus a J2534 interface for manufacturer software.
X-Prog 3
Programmer for immobilizer and key functions: read and write transponders, EEPROM and MCU in combination with the tablet’s IMMO functions.
i-TPMS
Tool for tire pressure sensors: activate and read sensors, as well as program compatible programmable sensors.
BST360
Battery tester for the battery, starting and charging systems. Results are transferred directly to the tablet and can be included in the diagnostic report.
VSP600 Videoscope
Camera probe for hard-to-reach areas such as combustion chambers, intake systems or hidden wiring – the image is displayed directly on the tablet.
The PAD VII supports a total of 8 expansion modules, including an oscilloscope and sensor box. These are not included in this set.
Practical Example: One Vehicle, Four Modules
A customer’s vehicle has starting problems, a tire pressure warning and needs an additional key – this set allows you to handle all of these tasks without a second diagnostic device:
- Check the Battery and Charging SystemThe BST360 tests the battery, starting process and alternator. This helps rule out the most common cause of starting problems – or confirm it.
- Full-System DiagnosticsUse the PAD VII to scan all control units, check the topology and narrow down faults using live data. If necessary, the VSP600 lets you inspect areas in the engine compartment that cannot be seen directly.
- Replace the Tire Pressure SensorUse i-TPMS to identify the faulty sensor, program a replacement sensor and perform the required relearn procedure on the vehicle.
- Program an Additional KeyUse X-Prog 3 together with the tablet’s IMMO functions to program an additional key – on supported vehicles.
Diagnostics, Programming and Coding
Diagnostics
- Full-system diagnostics for passenger cars and commercial vehicles
- Color-coded topology of all control units with fault status
- Bidirectional tests, e.g. windows, doors and sunroof
- 60+ reset, relearn and calibration functions
- Diagnostic plan: repair recommendations based on fault codes
- OBD pin detection: check protocols and pin voltages at the OBD port
- VAG guided functions without entering access codes or channel numbers
Programming and Coding
- Online ECU programming for more than 30 brands according to the manufacturer
- Offline programming of adaptive data after repairs
- J2534 programming via SmartLink C
- ECU coding and component matching
- Activation and deactivation of comfort functions
- FCA SGW via AutoAuth (account required)
Examples of Coding Functions
Depending on the vehicle, various comfort and display functions can be customized, for example:
- Disable Start/Stop
- Lock/unlock confirmation sound
- Automatic door locking at speed
- Seat belt warning sound
- Automatic mirror folding
- Close windows when locking
- Brake light flashing during emergency braking
- Daytime running lights and brightness
- Headlight flashing when locking/unlocking
- GPS speed display
- Instrument cluster brightness
- Gear shift recommendation in Eco/Sport mode
Available coding functions depend on the vehicle make, model, model year and control unit.
Technical Specifications – X431 PAD VII
| Display | 13.3-inch touchscreen, 1920 × 1080 |
|---|---|
| Operating System | Android 9.0 |
| RAM / Storage | 8 GB RAM / 256 GB |
| VCI | SmartLink C: VCI, remote diagnostics, J2534 Pass-Thru |
| Protocols | CAN 2.0, CAN FD, DoIP, J2534, D-PDU, RP1210 |
| Connection | 5 GHz Wi-Fi to VCI (up to approx. 20 m) |
| Ports | USB Type-C, USB Type-A, Micro-SD, Micro-SIM (LTE version) |
| Protection | IP65, corner protection |
Vehicle Coverage
- EuropeAudi, VW, Seat, Skoda, Porsche, Bentley, Mercedes-Benz, Maybach, Smart, Sprinter, BMW, Mini, Rolls-Royce, Opel, Vauxhall, Peugeot, Citroën, Renault, Dacia, Volvo, Saab, Fiat, Alfa Romeo, Abarth, Lancia, Maserati, Ferrari, Aston Martin, Jaguar, Land Rover, Rover
- AsiaToyota, Lexus, Honda, Acura, Mazda, Subaru, Nissan, Infiniti, Mitsubishi, Hyundai, Kia, Suzuki, Isuzu, Daihatsu, Daewoo, SsangYong, Proton, Perodua, Tata, Mahindra, Maruti
- USAFord, Lincoln, GM, Buick, Cadillac, Chevrolet, Chrysler, Dodge, Jeep
Commercial vehicles are also supported. Available functions vary depending on the vehicle make and model.
Package Contents
- X431 PAD VII Tablet
- SmartLink C Diagnostic VCI
- X-Prog 3
- i-TPMS
- BST360 Battery Tester
- VSP600 Videoscope
- USB Type-C Cable
- Power Adapter
- OBD2 Extension Cable
- Printer Cable
- Network Cable
Is This Set Right for Your Workshop?
Tell us which vehicle brands and types of work you handle most often – programming, keys, tire pressure sensors. We will check what the PAD VII supports for your vehicles before you order.
Frequently Asked Questions About the Launch X431 PAD VII Elite Set
What is the difference between the PAD VII and the PAD VII Elite Set?
In addition to the tablet and SmartLink C, the set includes four expansion modules: X-Prog 3, i-TPMS, BST360 and VSP600. Purchasing them separately would require four additional purchases.
Can the PAD VII program control units?
Yes. According to the manufacturer, online programming is supported for more than 30 brands, along with offline programming of adaptive data and J2534 programming using manufacturer software via SmartLink C.
What do I need the X-Prog 3 for?
For immobilizer and key-related work: reading and writing transponders, EEPROM and MCU in combination with the tablet’s IMMO functions. Support depends on the vehicle.
Is the PAD VII also suitable for commercial vehicles?
Yes. In addition to passenger cars, commercial vehicles are supported via RP1210 and the corresponding vehicle software.
Which modules can I add later?
The PAD VII supports a total of 8 expansion modules. For example, the oscilloscope and Sensor Box are not included in this set and are available separately.
