TOPDON PHOENIX SMART Vehicle Diagnostic Device / OBD Tester

SKU: 1067
78 in stock

2.150,00 2.500,00  incl. VAT

Did you like this product? Add to favorites now and follow the product.

Haben Sie eine Frage? Fragen Sie unseren Support.

Contact us via Formular

(+49) 178 201 4932

Kostenloser Support

Ein zufriedener Kunde ist Priorität

Kostenloser Versand EU

Deutschland 1-3 Tage

Kostenloser Versand

Alle Länder bis zu 15 Tage

Kostenloser Versand für die EU

Keine Versandkosten in der EU

Weltweiter Versand

Ml24 versendet weltweit

Chat-Unterstützung

AI Chat Support

Description

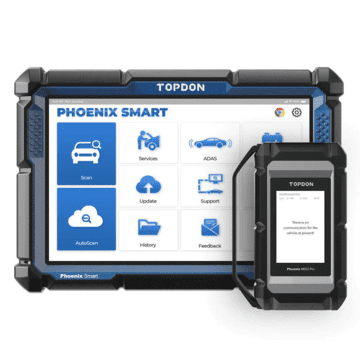

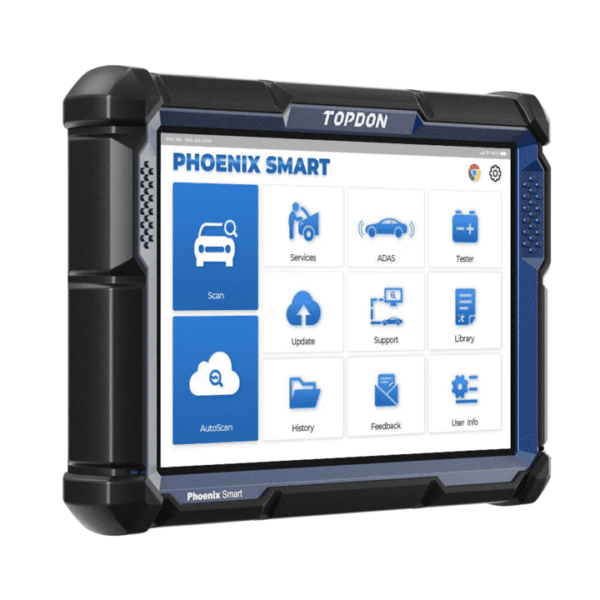

TOPDON PHOENIX SMART

This device comes with 2 years of free updates and a 1-year warranty. The Phoenix Smart® is part of the new generation of intelligent diagnostic devices from TOPDON. Equipped with quad-core processors and a 10.1-inch HD touchscreen, you can diagnose error codes with a single click using this tool. Its 12600mAh battery can work all day without worrying about performance loss. The Phoenix Smart also supports cloud-based programming for over 13 automotive brands. Combined with the MDCI Pro, this scanner offers unique coverage, intelligent diagnostics, and a wide range of maintenance functions.

WIDE COVERAGE AND COMPREHENSIVE DATABASE
The Phoenix Smart supports full-system error diagnosis for more than 200 vehicle brands. This tool provides OE-level diagnostics for the most common Asian, American, and European models as well as many other vehicle models.

PROGRAMMING FUNCTIONS AND ONLINE CODING
The Phoenix Smart includes online coding functions for Audi, BMW, Porsche, and other vehicle manufacturers. It supports cloud-based programming functions for 13+ automotive brands, such as Mercedes-Benz, BMW, VW (Audi/Skoda/Seat), Porsche, Land Rover/Jaguar, Nissan, Subaru, Renault, Hyundai, and many more!

KEY PROGRAMMING AND ECU
With the TNJ Box

TNJ Box Schlüssel Programmierer TOPDON

THE PHOENIX MDCI PRO COVERS THE NEED
The TOPDON Phoenix Smart comes with the Phoenix MDCI Pro, a VCI that supports protocols J2534, DoIP, CanFD, D-PDU, and RP1210. The unparalleled coverage of this MDCI Pro allows you to provide OE-level services for newer and more modern vehicles.

STEP-BY-STEP GUIDED PROCEDURES
Guided procedures and functions streamline the repair process. Follow the instructions for easy and convenient operation, suitable for VW, Audi, Skoda, and SEAT vehicles.

DISPLAY OF ALL ERROR CODES ON ONE SCREEN
The Phoenix Smart utilizes topology mapping and displays the entire vehicle system. Raw data is converted into clear graphics, allowing technicians to see the entire status of the vehicle system and address the vehicle’s issues directly.

ACCESS TO THE FCA GATEWAY
This advanced diagnostic tool supports FCA gateway access, allowing users to work with the latest vehicles and adjust protected functions.

ACHIEVE MORE WITH SPECIAL SETTINGS
With the Phoenix Smart, users can unlock special functions and settings in the vehicle. These advanced functions include activating video in motion via DVD or USB, deactivating the seatbelt light, and much more. Applicable to vehicle brands such as Audi, VW, BMW, Porsche, Toyota, and more!

ADAS COMPATIBILITY
Offer in-demand services to your customers with the Phoenix Smart. Combine the Phoenix Smart with the TOPDON Phoenix ADAS Mobile Package to calibrate complex driver assistance functions. With the increasing prevalence of ADAS software in modern vehicles, the demand for ADAS recalibration will continue to rise. Meet this growing demand with confidence.

Technical Specifications
Display: LCD 10.1-Inch, 1280 * 800
CPU: 4-core Processor, 2.0GHz
Android 10.0
RAM: 4G, ROM 128G
Battery: 12000 mAh / 3.8V
Operating Voltage: 9~18V
Storage Temperature: -20℃~60℃(-4℉~140℉)
Working Temperature: 0℃~50℃(32℉~122℉)
Dimension: 278*191*48 mm(10.94*7.52*1.89 inch)
Package Size: 468*320*143 mm(18.43*12.60*5.63 inch)
Net Weight: 1455 g(3.20 lb)
Multilingual Support: English, French, German, Spanish, Portuguese, Russian, Japanese, Italian, Korean, Chinese(traditional), Hungarian, Dutch, Turkish, Polish, Finnish

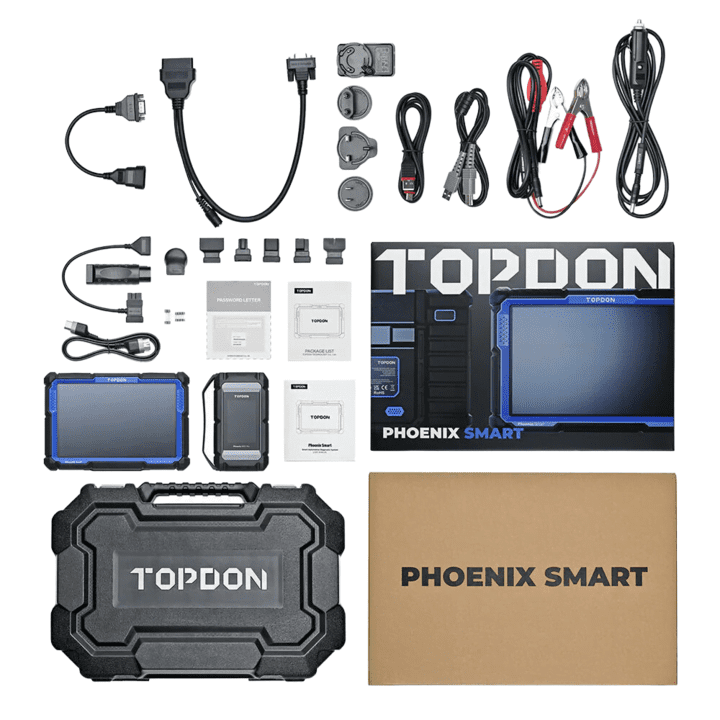

Package Contents
1* Phoenix Smart Tablet

1* VCI-Dongle (J2534)

1* OBDI Adapter BOX Transfer Cable

1* OBDII Extension Cable

1* Cigarette Lighter Cable

1* Type-C to USB Cable

1* Battery Clips/Cable Set

1* Power Adapter

1* User Manual

1* Password Envelope

1* OBD1 Adapter Cable Kit

1* BMW Programming Cable

1* Ethernet Cable

1* USB Ethernet Adapter

TRUCK Activation
can be purchased separately:

TOPDON HD LKW FREISCHALTUNG

Vehicle Coverage List:
https://www.topdon.com/pages/support-diagnostic-tool

APK for AlldataOnline
