Autel G-Box2 Auto Smart Key Programming IMMO Scanner for Mercedes-Benz

Description

Autel G-Box – Professional Accessory Tool for Mercedes-Benz and BMW

The Autel G-Box is specifically designed for working with Mercedes-Benz vehicles equipped with DAS3 CAN EIS/EZS systems when all keys are lost. It significantly accelerates password calculation and ECU data reading.

Additionally, the G-Box supports working with BMW DME/DDE ISN data in Boot Mode, making it an essential tool for professionals.

Key Features of the Autel G-Box

✅ Faster Password Calculation for Mercedes-Benz
🔹 8x faster for EIS models such as W172, W204, and W207.
🔹 4x faster for EIS models such as W209 and W211.

✅ No Repeated Use of the IR Simulator
🔹 No need for repeated insertion and removal of the IR simulator for certain models (e.g., W164/-2008, W251/-2008).

✅ Direct Vehicle Key Programming
🔹 For most Mercedes-Benz models, key programming can be done directly on the vehicle without removing the EIS.

✅ BMW Support
🔹 Reads and writes DME/DDE ISN data in Boot Mode.
🔹 Supports 23 categories of Bosch engines and 6 categories of Siemens/Continental engines.

✅ Time-Saving
🔹 Reduces ECU data reading time by over 85% for W204 and W207 EIS.

Compatibility

✔ Works with Autel MaxiIM IM608 and IM508 (XP400 required).
✔ Supports Auro IM600 and IM100 with XP400.
✔ Suitable for Mercedes-Benz models with DAS3 EIS/EZS after 2009.

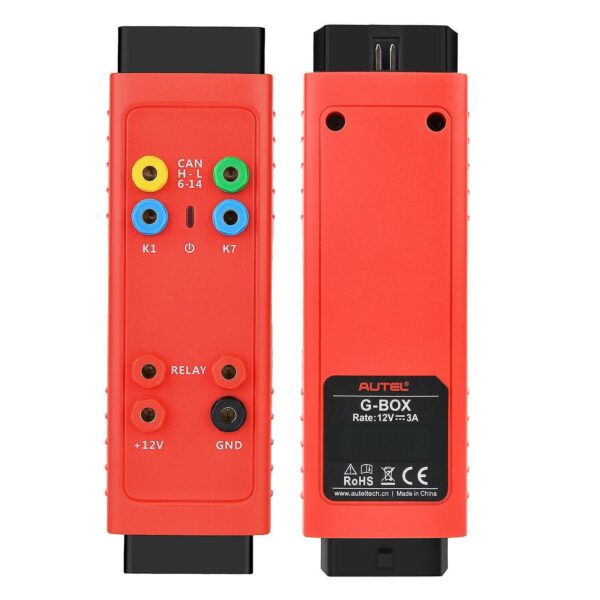

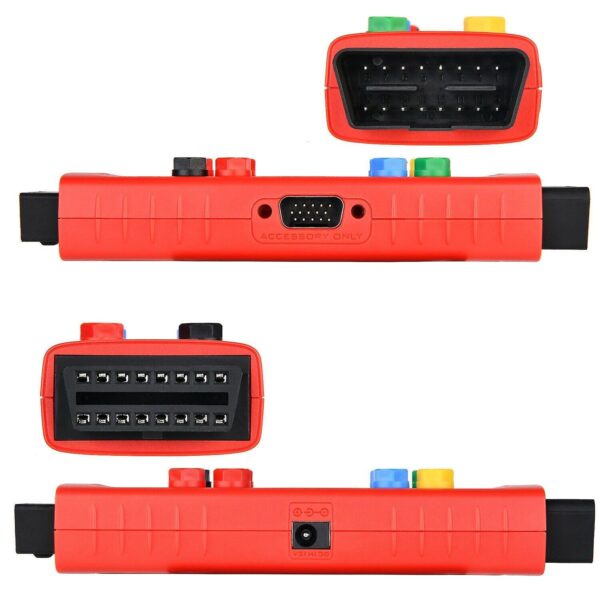

Technical Specifications

• DC Connector: +12V power supply
• CAN-H and CAN-L Ports: Universal CAN-Bus interfaces
• K1 and K7 Ports: Universal K-Line interfaces
• Status Indicator: Displays current operational state
• OBDII Connector: Connects to the vehicle’s OBDII port
• DB15 Port: For reading and writing ECU data using dedicated cables

Autel G-Box Applications

1. OBDII Operation

📌 Ideal when all keys are lost (e.g., Mercedes W204, W207, W216, W164).

Connection Steps:
🔹 Connect G-Box to the vehicle’s OBDII port.
🔹 Remove the EIS fuse and connect relay terminals using the fuse cable.
🔹 For older vehicles, connect K7 and ELV connectors using a K-Line cable.
🔹 Pair G-Box with the Autel diagnostic tablet.

2. Desktop Operation

📌 For all Mercedes-Benz EIS models supported by Autel diagnostic tablets.

Connection Steps:
🔹 Connect G-Box to the EIS unit via the DB15 cable.
🔹 Use a 12V DC power supply to power the G-Box.
🔹 Connect G-Box to the Autel diagnostic tablet.

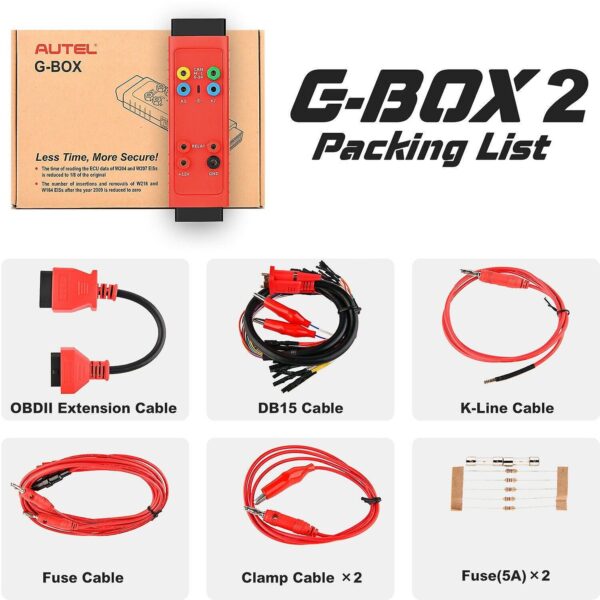

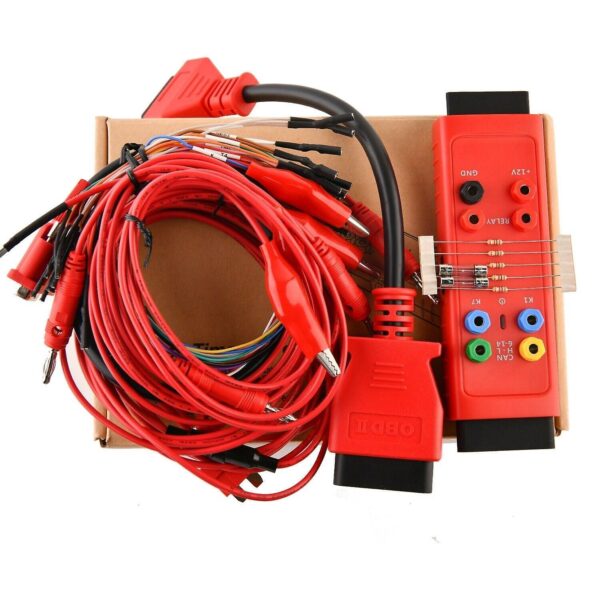

Package Contents

📦 1× Autel G-Box Accessory Tool
📦 1× Clamp Cable
📦 1× K-Line Cable
📦 1× Fuse Cable
📦 1× OBDII Extension Cable
📦 1× DB15 Cable

Why Choose the Autel G-Box?

✅ Time and cost-efficient solution for Mercedes-Benz and BMW vehicles.
✅ Faster password calculation for Mercedes-Benz models.
✅ User-friendly operation with minimal steps for setup.
✅ Broad compatibility with Autel and Auro diagnostic tools.

🔑 Autel G-Box – A Must-Have Tool for Automotive Technicians and Locksmiths! 🚗🔧
