THINKTOOL LITE 2023 with 28 service functions including printer

SKU: 1209
93 in stock

Original price was: 648,00 €.Current price is: 500,00 €. incl. VAT

93 in stock

Did you like this product? Add to favorites now and follow the product.

Haben Sie eine Frage? Fragen Sie unseren Support.

Chat starten

(+49) 178 201 4932

Kostenloser Support

Ein zufriedener Kunde ist Priorität

Kostenloser Versand EU

Deutschland 1-3 Tage

Kostenloser Versand

Alle Länder bis zu 15 Tage

Kostenloser Versand für die EU

Keine Versandkosten in der EU

Weltweiter Versand

Ml24 versendet weltweit


AI Chat Support


THINKTOOL LITE is a diagnostic system from THINKCAR. It provides comprehensive system coverage for over 90 brands and models worldwide. This professional-grade diagnostic device can code some control units, features 28 service functions, and supports actuator diagnosis, module exchange, modification, personalization, anti-theft adaptation, and key programming. (To check if the function is supported for your vehicle, see the coverage list here:

This intelligent diagnostic system was specifically designed for medium-sized or large workshops and vehicle repair shops.

Optional accessories available:

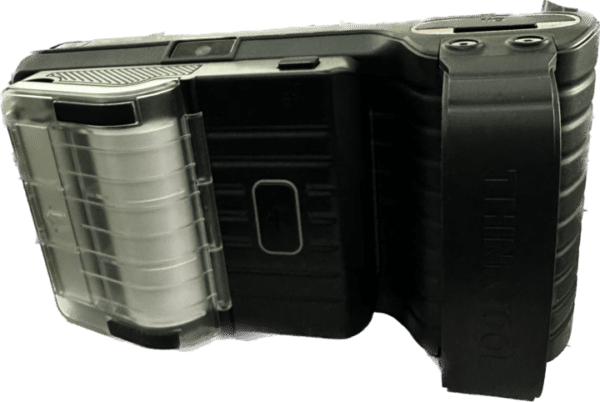

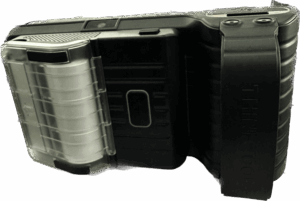

– The printer allows you to print your diagnostic results directly. (Included with this device)
– The work light serves as a lighting aid.
– The endoscope enables checking for faults in tight and dark spaces.
– The battery tester provides a complete battery testing service.
– The thermal imaging camera scans and captures vehicle temperature.
– The oscilloscope checks for faults in the vehicle circuit.
All modules connect to the main unit via Wi-Fi or USB cable.

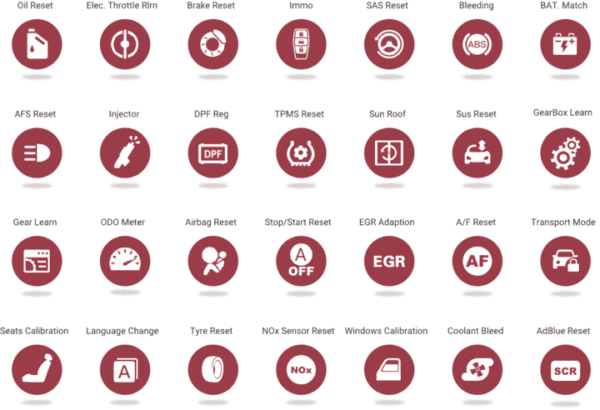

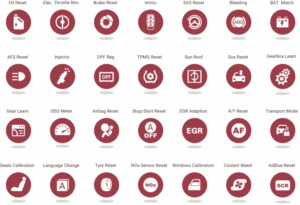

28 Service Functions:

– Brake reset (BRAKE)
– Oil service & inspection (OIL)
– Steering angle sensor (SAS)
– Battery replacement (BMS)
– Brake bleeding (BLEEDING)
– Throttle valve (ETS)
– Tire pressure monitoring system (TPMS)
– Diesel particulate filter (DPF)
– Adaptive front light system (AFS)
– Exhaust gas recirculation (EGR)
– Transmission adaptation (BOX)
– Immobilizer (IMMO)
– Injector coding (INJEC)
– Suspension calibration (SUS)
– Change tire circumference (TYRE)

Supported languages:
English, French, German, Italian, Spanish, Portuguese, Russian, and Polish.

2 years of free software updates (license for an additional year costs €265.96 including VAT.)

The device will not be locked after the license expires.

Operating system: Android 10
Processor: Contex-A53 Core 4, 1.8GHz
Memory: 2GB RAM
Hard drive: 32GB integrated storage
Display: 6″ touchscreen, 1440×720
Camera: Rear: 8.0 Megapixel
Battery: 6200mAh / 3.8V
Network: WLAN 802.11 b/g/n
Bluetooth: Bluetooth 5.0
Operating temperature: 0°C to +50°C
Storage temperature: -20°C to +60°C

Package Contents:
1 * Main unit
1 * Printer
1 * Bluetooth VCI connector
1 * EU power adapter
1 * USB cable
1 * User manual in German
1 * Storage box

Additional information

Weight 3,35 kg
